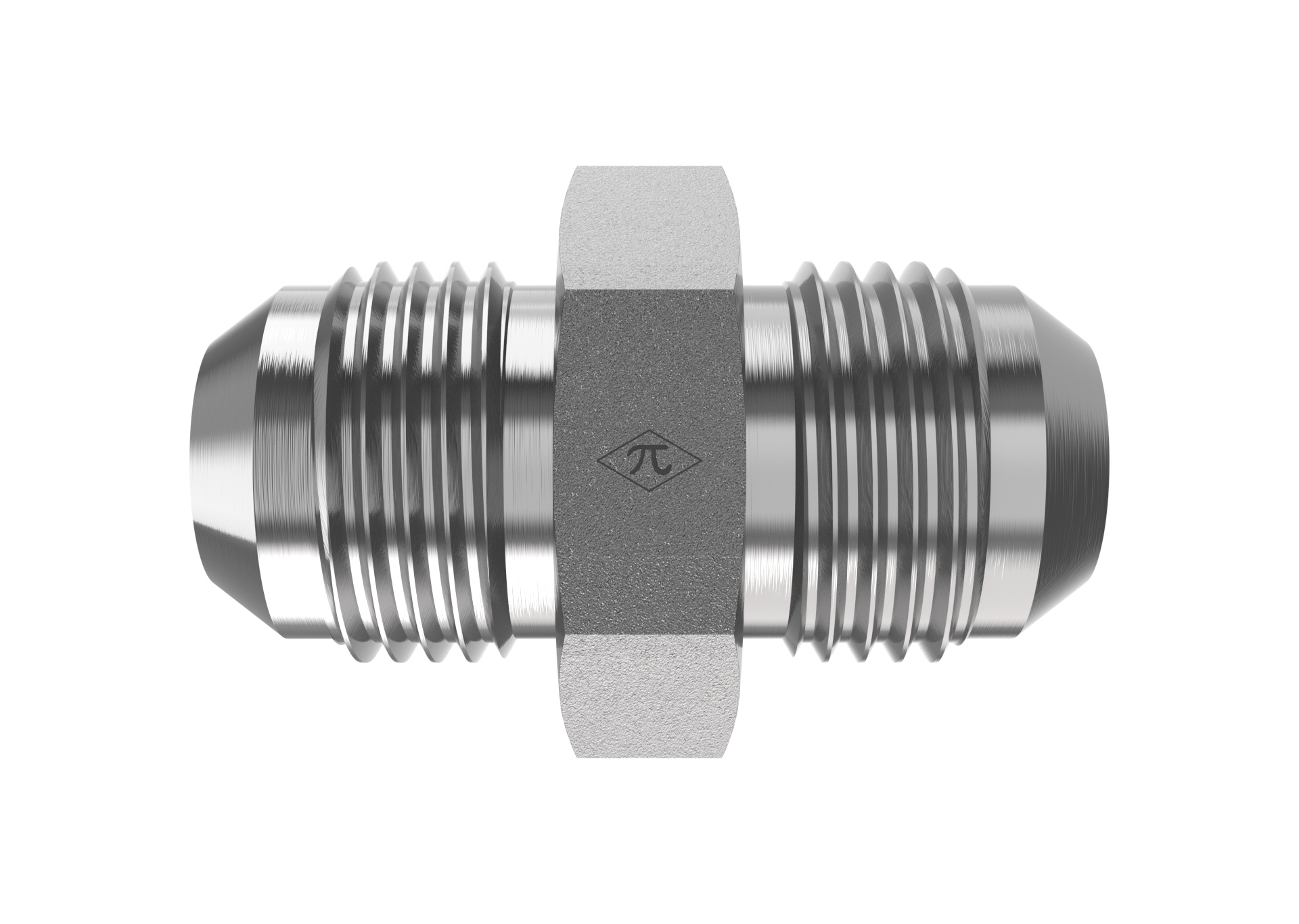

2403-LH product image

2403-LH-06-05-SS

3/8" Male JIC x 5/16" Male JIC

2403-LH-06-05-SS is a 3/8" Male JIC x 5/16" Male JIC in the 2403-LH Series. For connecting two 37° flared tubes or lines with larger hex body for easier wrenching.

  • Stainless Steel
  • Union
  • None
$12.94
(0) Write a Review
SKU:
2403-LH-06-05-SS

Product Details

Connection A
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Connection B
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeUnion
Weight0.25 lb
PlatingNone
Cross References
Aeroquip259-202712-6-5
Parker6-5 LHTX-SS
SAE Ref.SAE J514 6-5 070119S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
