6504-12-12

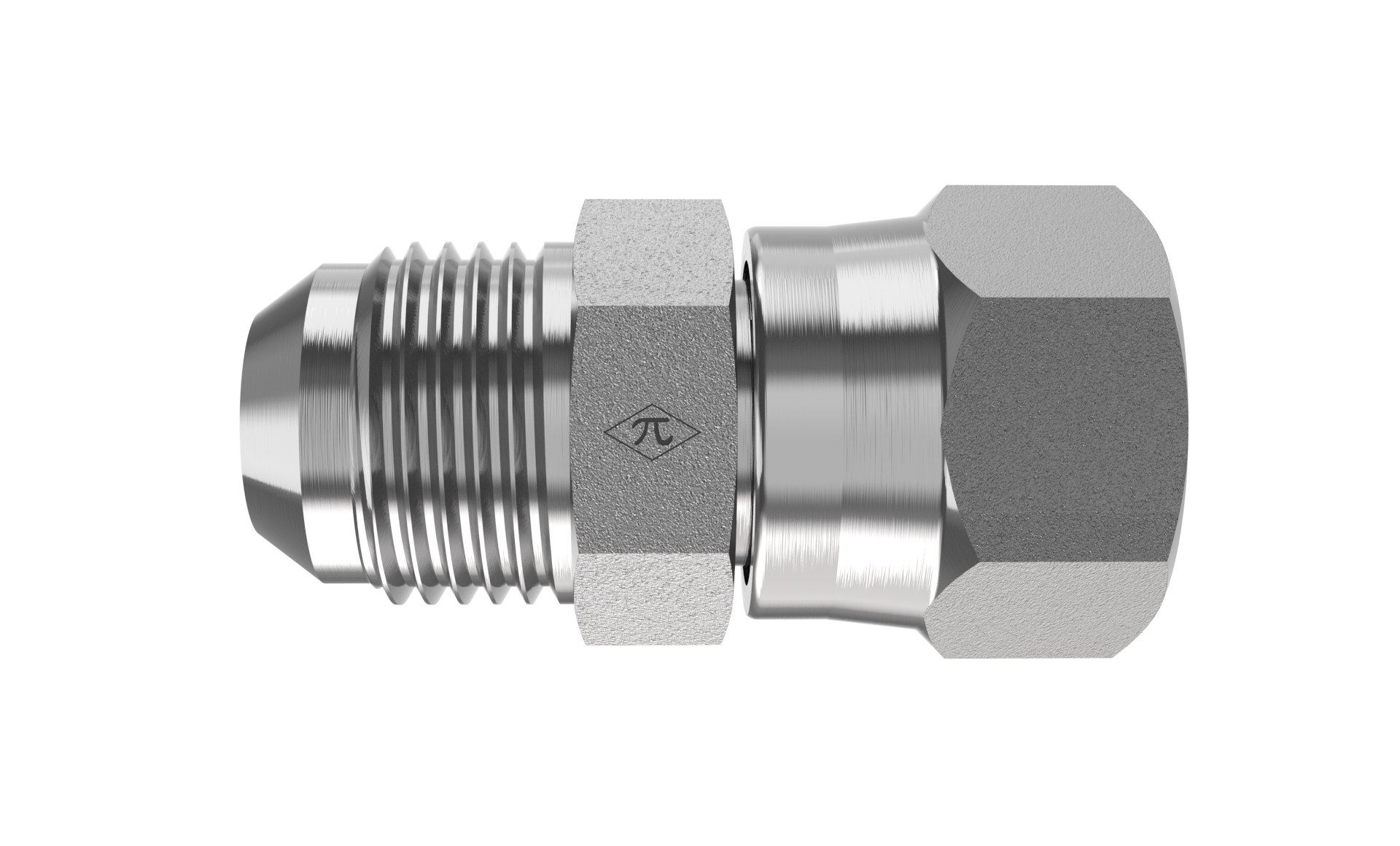

3/4" Male JIC x 3/4" Female JIC Swivel

6504-12-12 is a 3/4" Male JIC x 3/4" Female JIC Swivel in the 6504 Series. For connecting 37° flared tubes or lines to JIC lines using a swivel for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Adapter
$5.83
(0) Write a Review
SKU:
6504-12-12

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeFemale JIC Swivel
Tube OD3/4"
StandardSAE J514 - Class 2B Thread
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Adapter
Weight0.37 lb
Cross References
Parker12 XHX6-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
