6505 product image

6505-08-10-SS

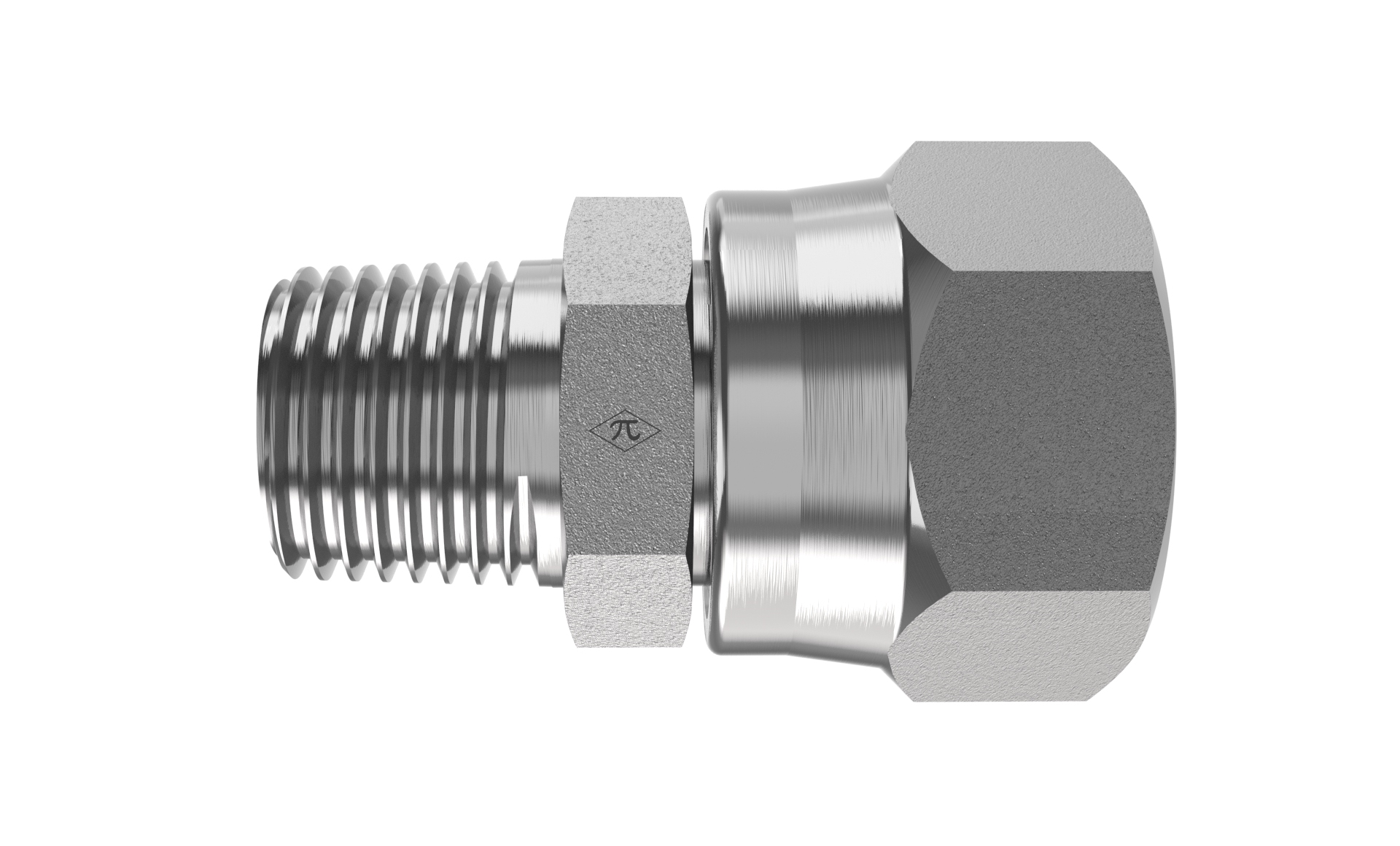

1/2" Male NPTF 30° x 5/8" Female JIC Swivel

6505-08-10-SS is a 1/2" Male NPTF 30° x 5/8" Female JIC Swivel in the 6505 Series. For connecting pipe to JIC lines using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Swivel Connector
  • None
$65.01
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale JIC Swivel
Tube OD5/8"
StandardSAE J514 - Class 2B Thread
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight0.24 lb
PlatingNone
Cross References
Aeroquip259-2018-8-10
Parker10 F6X-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
