6565 product image

6565-24-24-SS

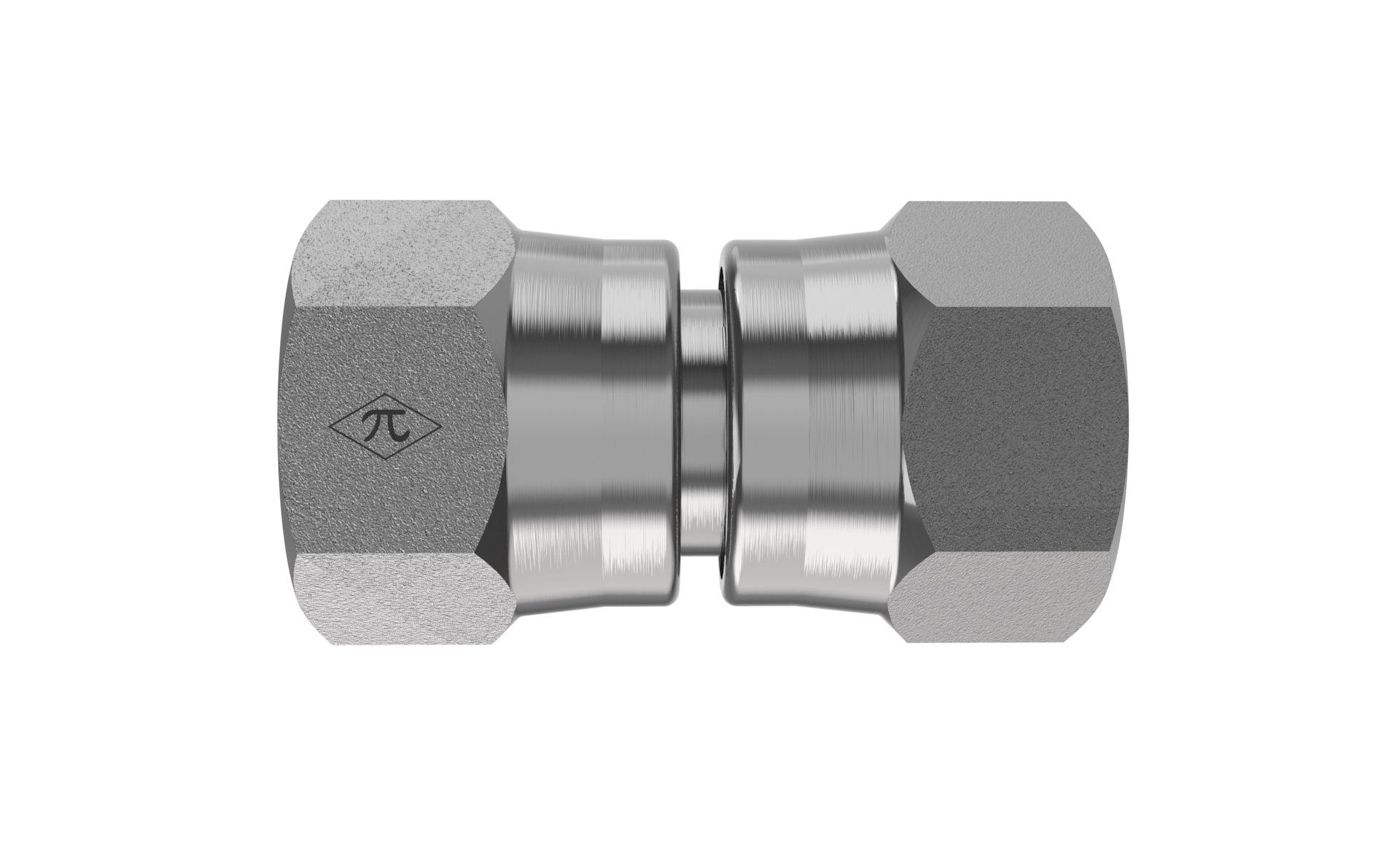

1-1/2" Female JIC Swivel x 1-1/2" Female JIC Swivel

6565-24-24-SS is a 1-1/2" Female JIC Swivel x 1-1/2" Female JIC Swivel in the 6565 Series. For joining two JIC lines together using swivels for alignment.

  • Stainless Steel
  • Swivel Union
  • None
$196.75
(0) Write a Review
SKU:
6565-24-24-SS

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1-1/2"
StandardSAE J514 - Class 2B Thread
Thread Type1-7/8-12 UN
Connection B
TypeFemale JIC Swivel
Tube OD1-1/2"
StandardSAE J514 - Class 2B Thread
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Union
Weight1.31 lb
PlatingNone
Cross References
Aeroquip259-FF1730-2424
Parker24 HX6-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
