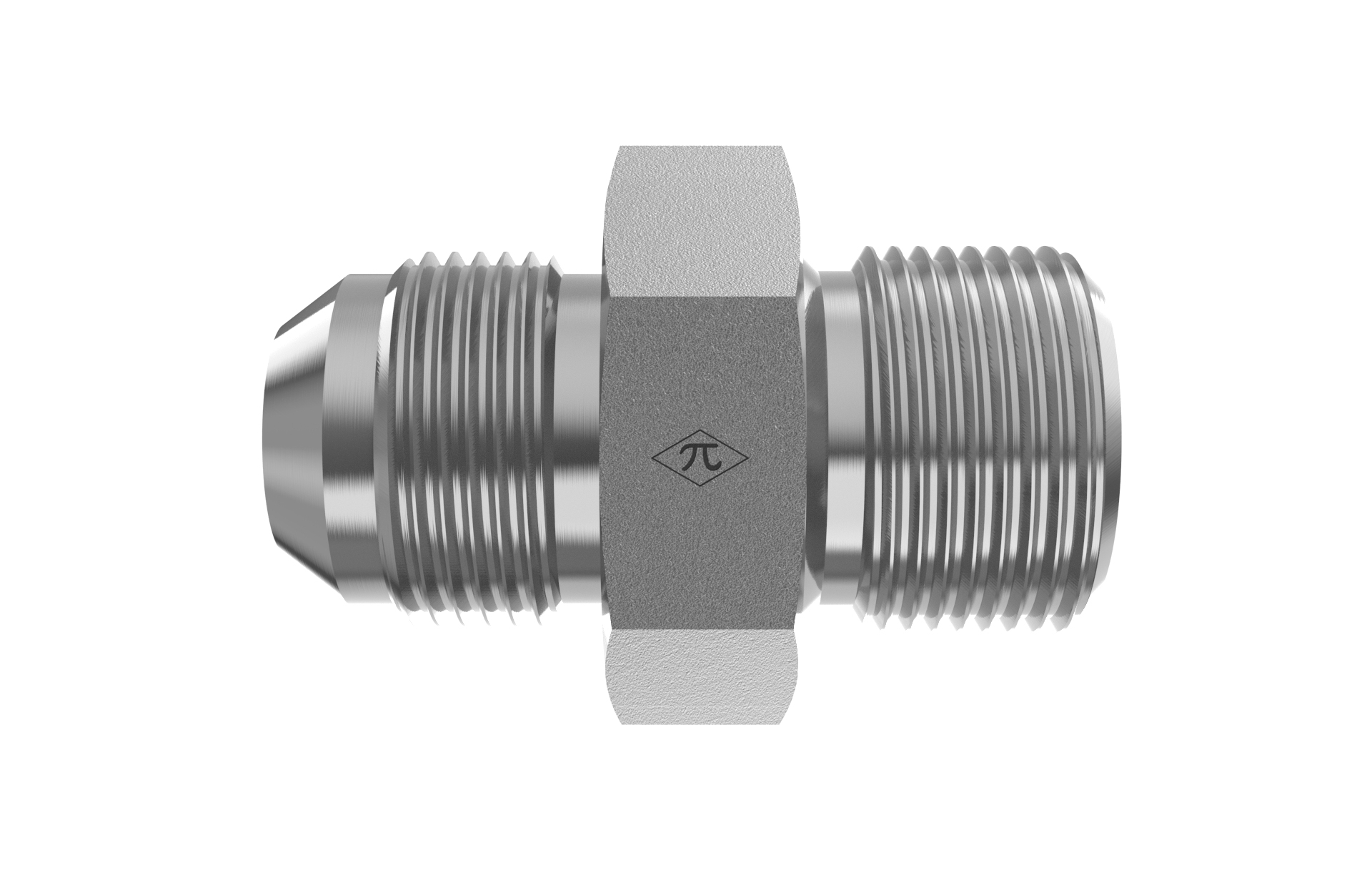

7002 product image

7002-04-06-BS

1/4" Male JIC x 3/8" Male BSPP

7002-04-06-BS is a 1/4" Male JIC x 3/8" Male BSPP in the 7002-BS Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port using a bonded seal.

  • Steel
  • Trivalent Zinc
  • Adapter
$3.26
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale BSPP
Pipe Size3/8"
StandardBS 5200 / ISO 228
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.10 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
