7002 product image

7002-05-08-BS

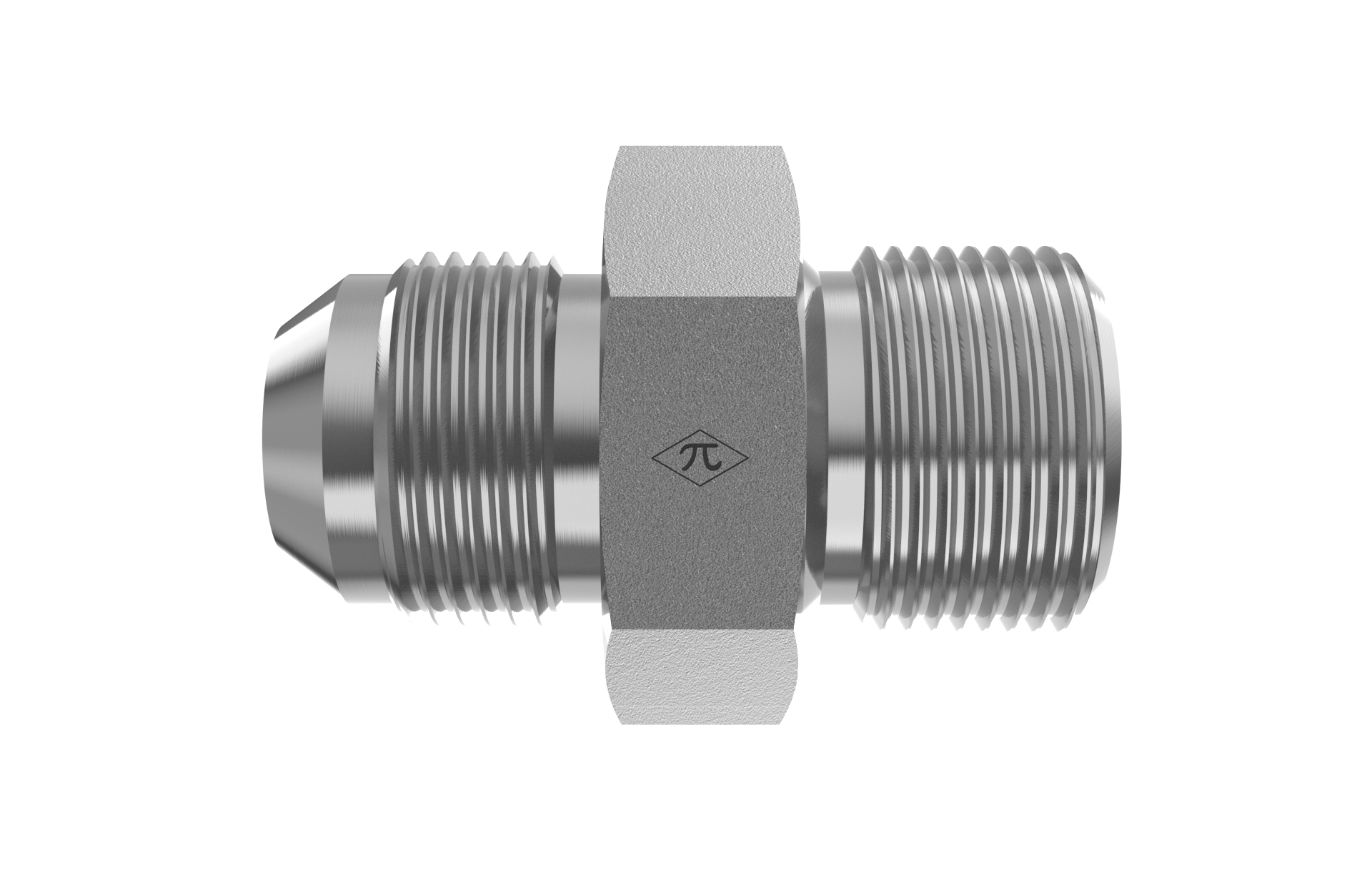

5/16" Male JIC x 1/2" Male BSPP

7002-05-08-BS is a 5/16" Male JIC x 1/2" Male BSPP in the 7002-BS Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port using a bonded seal.

  • Steel
  • Trivalent Zinc
$6.95
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Connection B
TypeMale BSPP
Pipe Size1/2"
StandardBS 5200 / ISO 228
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
