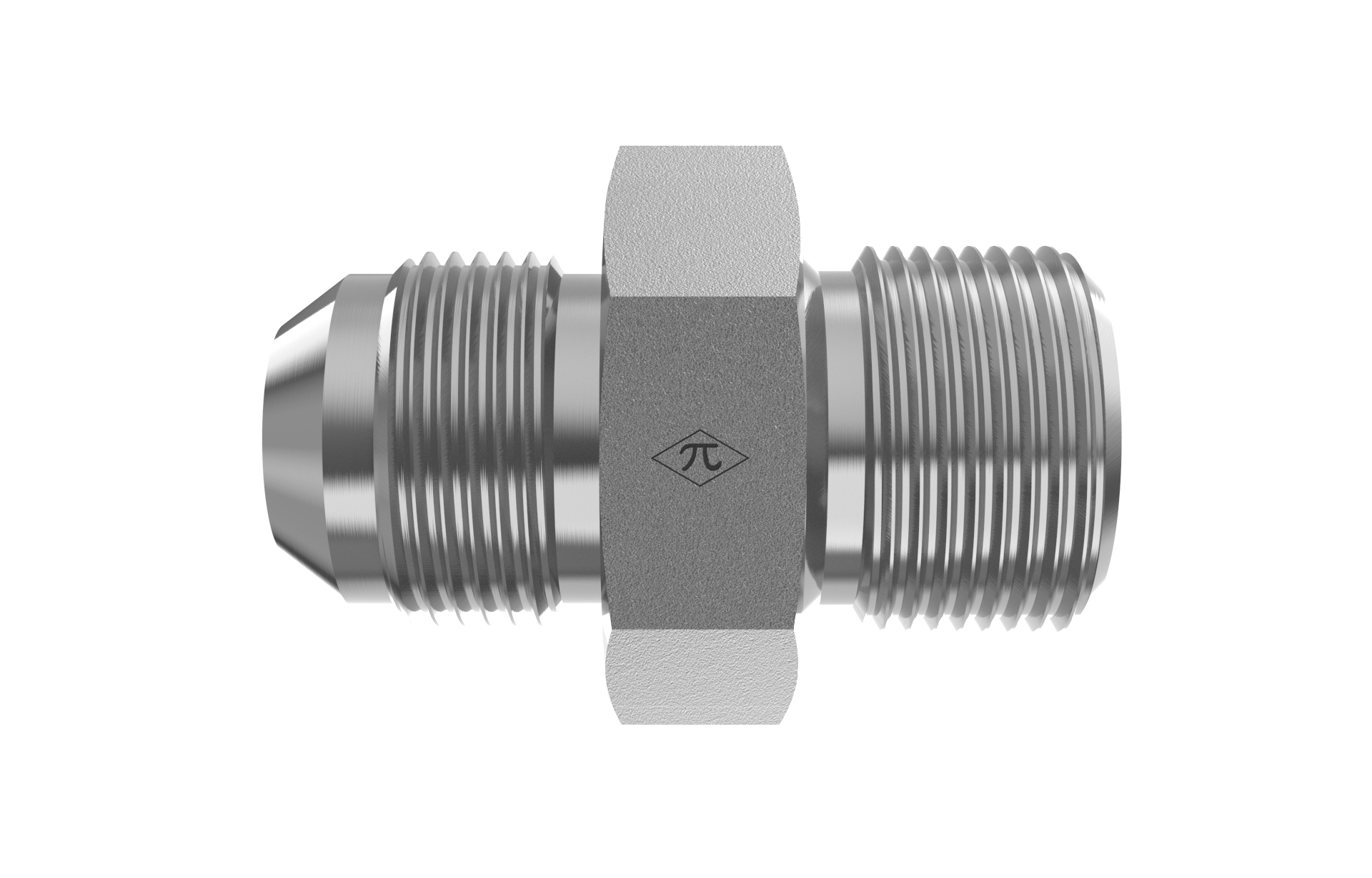

7002 product image

7002-06-06

3/8" Male JIC x 3/8" Male BSPP

7002-06-06 is a 3/8" Male JIC x 3/8" Male BSPP in the 7002 Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port.

  • Steel
  • Trivalent Zinc
  • Adapter
$2.44
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale BSPP
Pipe Size3/8"
StandardBS 5200 / ISO 228
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.09 lb
Cross References
Aeroquip2063-6-6S
Parker6-6 XHK4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
