7002 product image

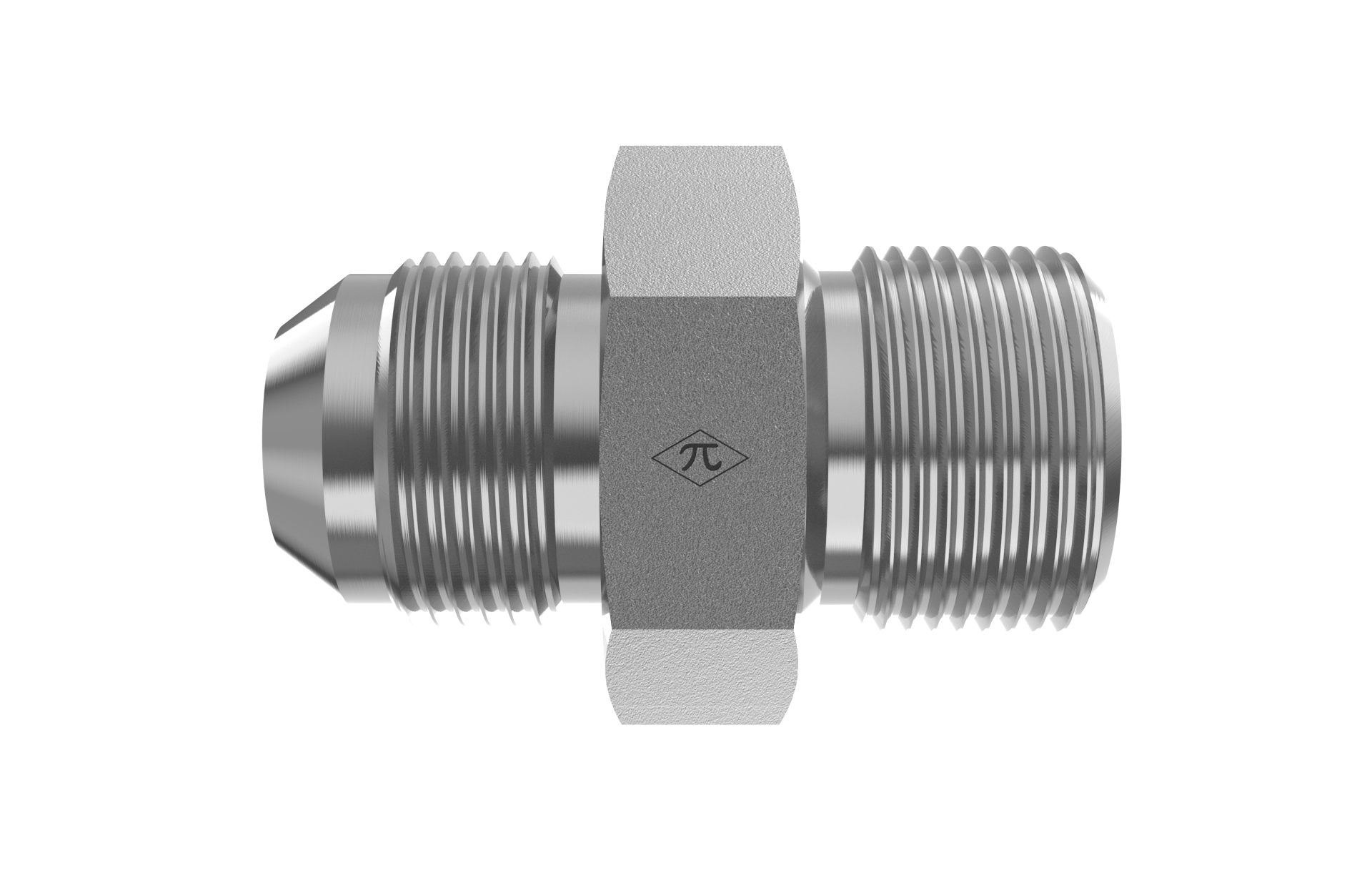

7002-06-08-BS

3/8" Male JIC x 1/2" Male BSPP

7002-06-08-BS is a 3/8" Male JIC x 1/2" Male BSPP in the 7002-BS Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port using a bonded seal.

  • Steel
  • Trivalent Zinc
  • Adapter
$4.15
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale BSPP
Pipe Size1/2"
StandardBS 5200 / ISO 228
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.18 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
