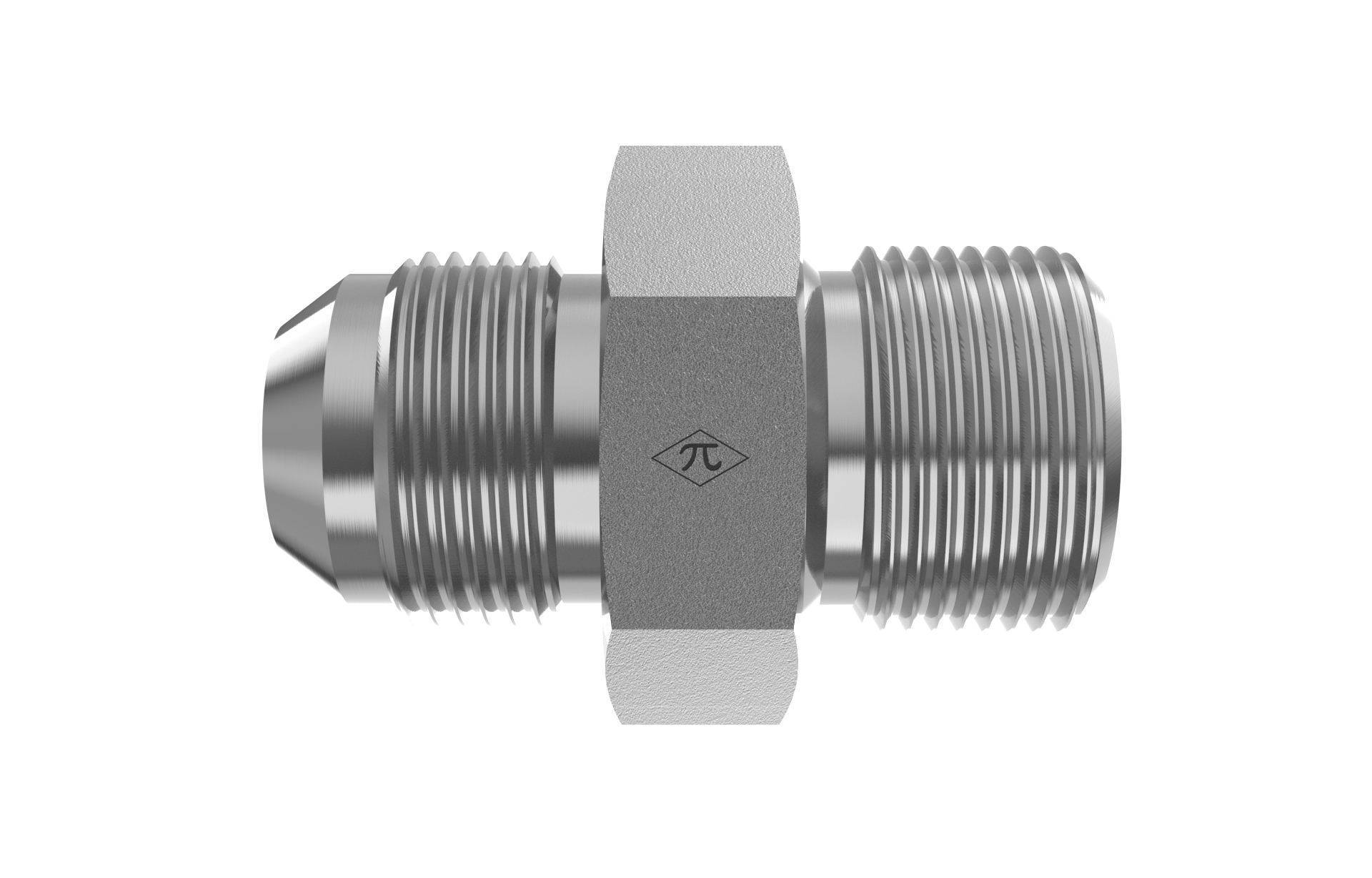

7002 product image

7002-10-12-SS

5/8" Male JIC x 3/4" Male BSPP

7002-10-12-SS is a 5/8" Male JIC x 3/4" Male BSPP in the 7002 Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port.

  • Stainless Steel
  • Passivated
  • Adapter
$50.30
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeMale BSPP
Pipe Size3/4"
StandardBS 5200 / ISO 228
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeAdapter
Weight0.28 lb
Cross References
Aeroquip259-2063-12-10
Parker10-12 XHK4SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
