7002 product image

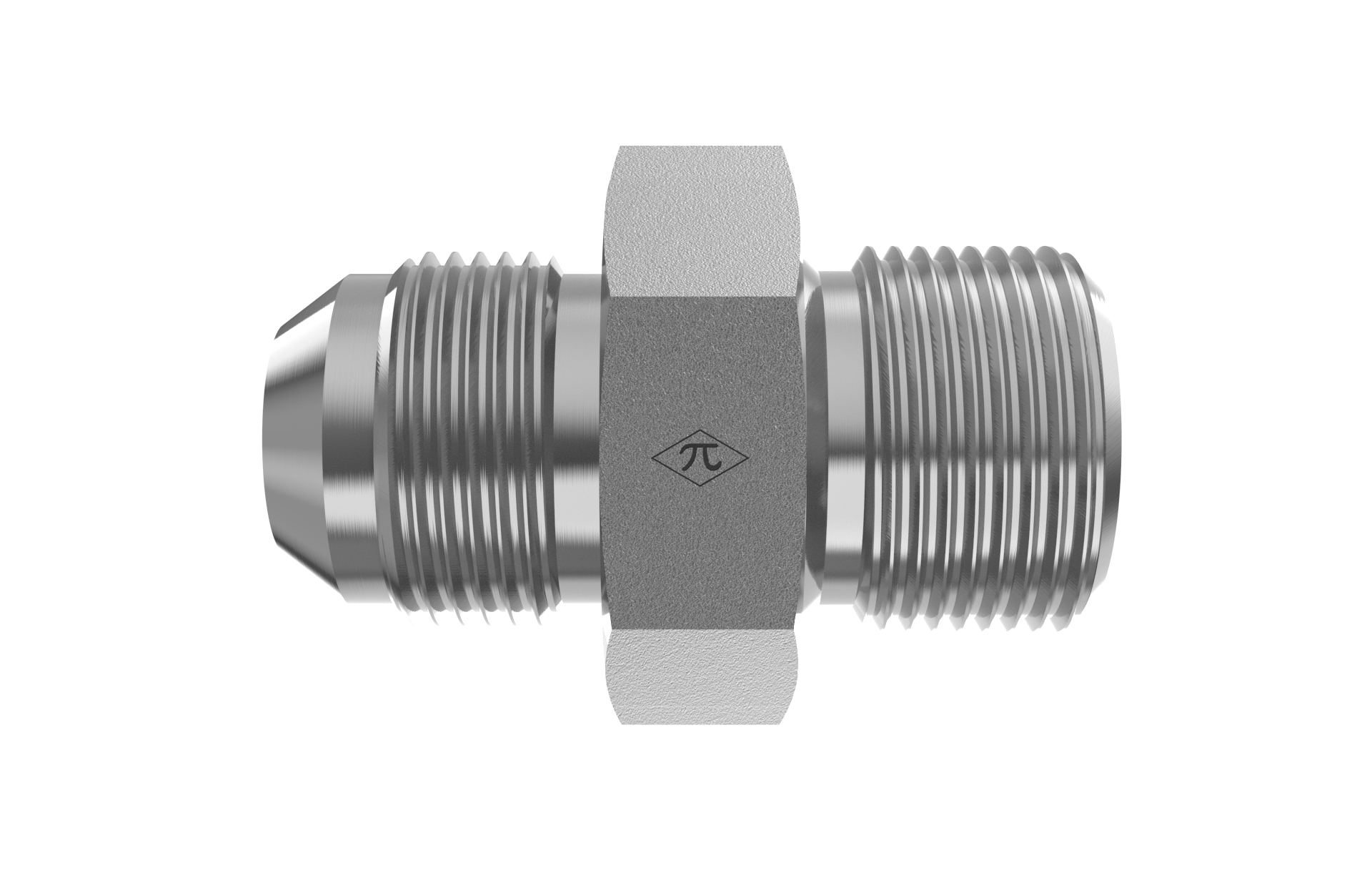

7002-16-32

1" Male JIC x 2" Male BSPP

7002-16-32 is a 1" Male JIC x 2" Male BSPP in the 7002 Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port.

  • Steel
  • Trivalent Zinc
  • Adapter
$83.00
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale BSPP
Pipe Size2"
StandardBS 5200 / ISO 228
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight1.38 lb
Cross References
Aeroquip2063-32-16S
Parker16-32 XHK4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
