7004-10-08

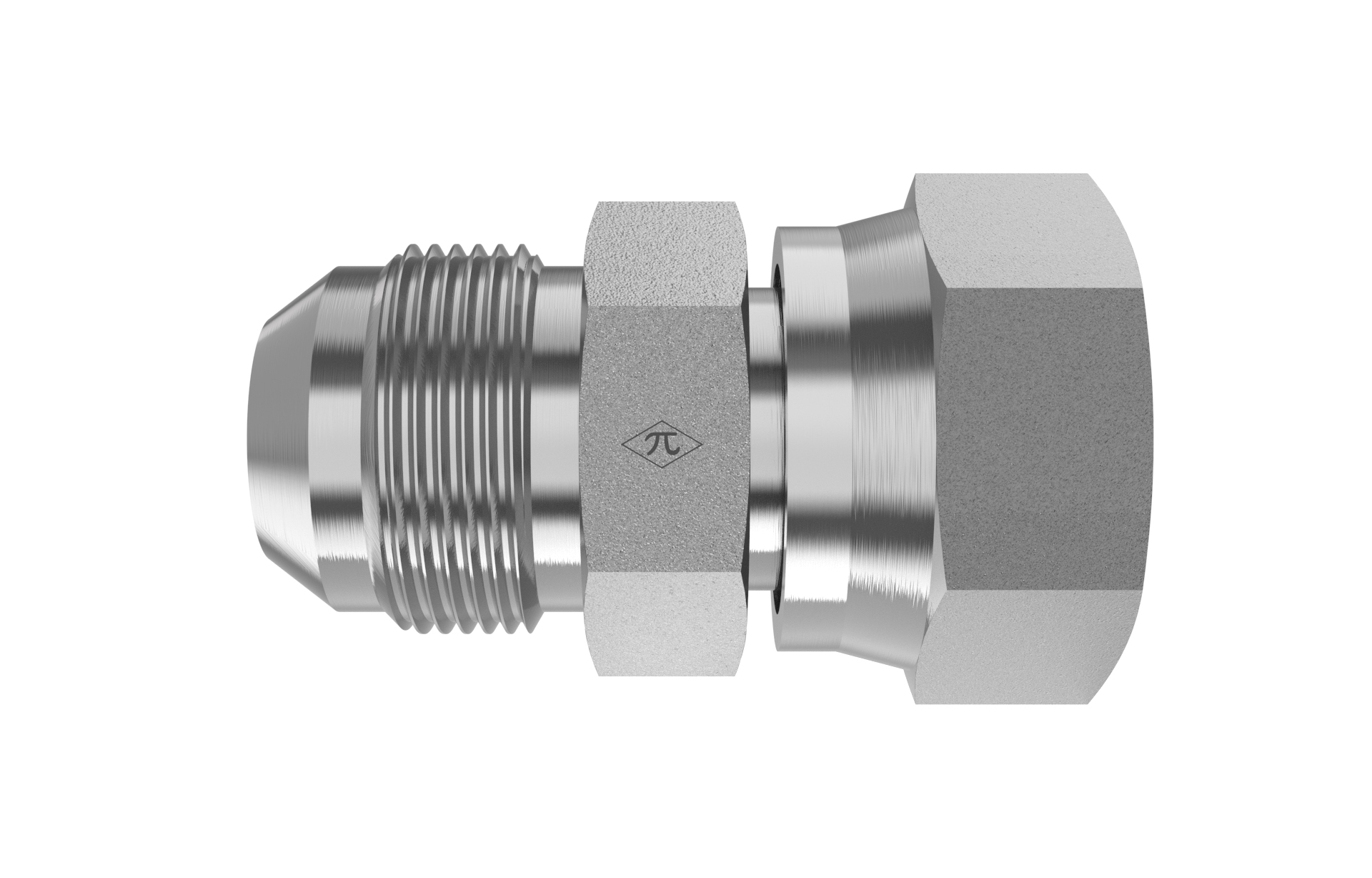

5/8" Male JIC x 1/2" Female BSPP Swivel

7004-10-08 is a 5/8" Male JIC x 1/2" Female BSPP Swivel in the 7004 Series. For connecting a 37° flared tube or line to a BSPP (parallel) line connection using a swivel for easy installation alignment.

  • Steel
  • Trivalent Zinc
  • Adapter
$6.95
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeFemale BSPP Swivel
Pipe Size1/2"
StandardBS 5200 / ISO 228
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.26 lb
Cross References
Parker10-8XHMK46S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
