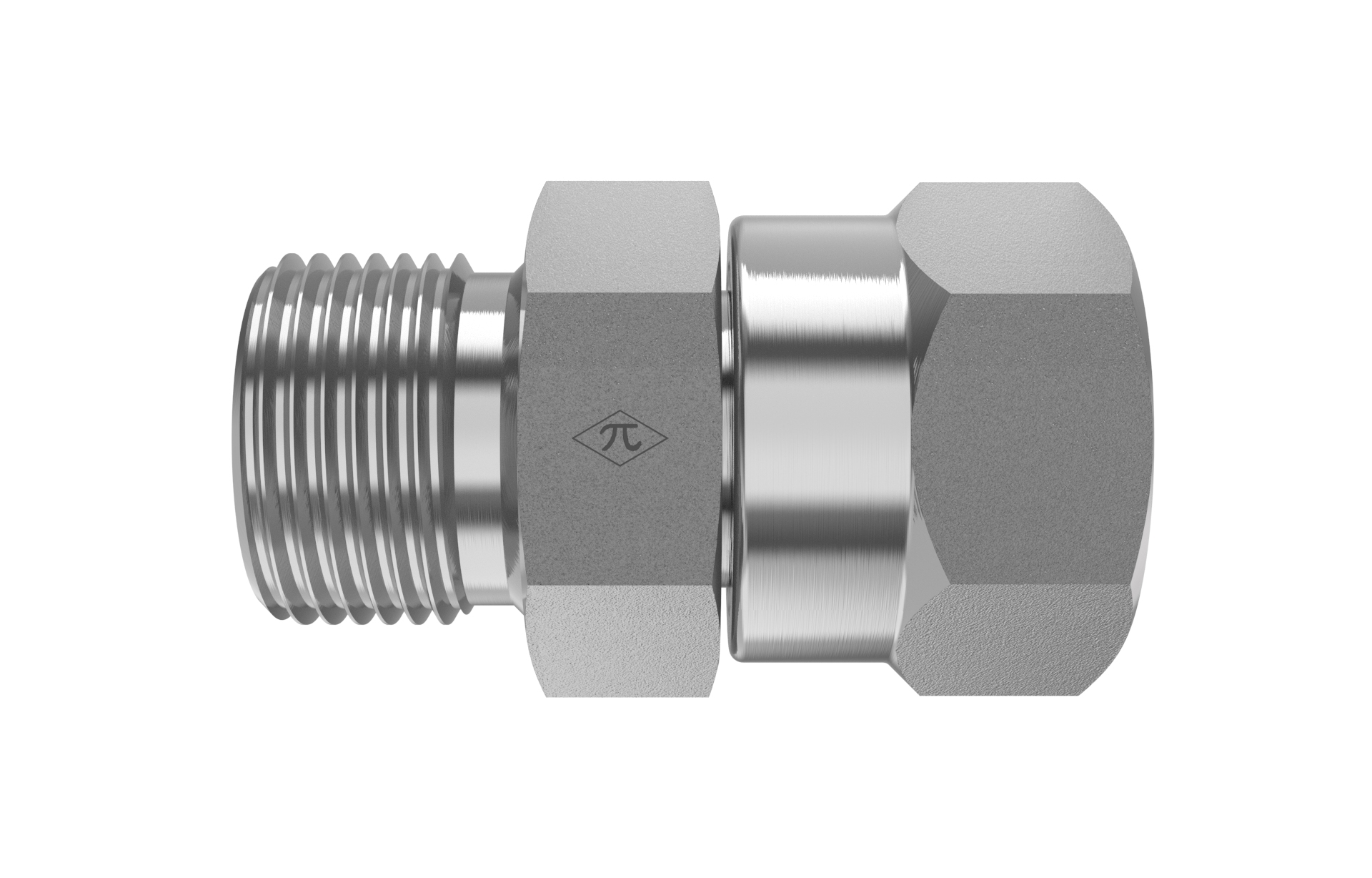

7022 product image

7022-24-24-ORR

1-1/2" Female JIC Swivel x 1-1/2" Male BSPP

7022-24-24-ORR is a 1-1/2" Female JIC Swivel x 1-1/2" Male BSPP in the 7022-ORR Series. For connecting JIC lines to a male BSPP (parallel) port using an O-ring and retaining ring for sealing and a JIC swivel for easy installation alignment.

  • Steel
  • Trivalent Zinc
  • Straight
$35.13
(0) Write a Review

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale BSPP
Pipe Size1-1/2"
StandardBS 5200 / ISO 228 (Type G)
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Weight0.23 lb
Cross References
Parker24F64OMXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
